ALIS Induction Power Led Lighting

ALIS LED Clip on lighting for agriculture

ALIS: induction Power technology Poultry Lighting

The AgriLamp Induction System (ALIS) is a 'contactless' power technology that allows the LED device (ALIS-Luminaire) to be clipped onto the cable (ALIS-Bus) without a physical connection. It works on the principle of distributing a highly regulated and safe intermediate frequency alternating current (IFAC) constant current over ALIS-Bus to the ALIS-Luminaire.

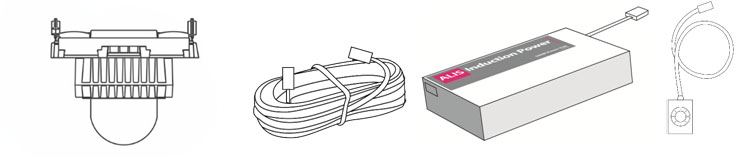

The ALIS system works by distributing highly regulated, safe and constant current over the cable and LED fixtures. The system consists of four main components: the bulbs, the cable, the power hub, and an optional dimmer.

Alis Induction Clip on lighting system

TECHNICAL INFORMATION
Light Source 8W High Power LED
Luminous Flux 550 lumens (8W ALIS-Luminaire)
Optics Optical grade milky white standard and tulip polycarbonate lens
Connection Type Clip-on
Dimmer Option 100K potentiometer or 0-10V
Rating IP65
Rated Life 40,000 Hours or more

WORKING ENVIRONMENT CONDITIONS
Ambient Temperatures -20°C to 55°C
Humidity Range 0 to 95% humidity

ELECTRICAL SPECIFICATIONS
Input Voltage 220/240Vac 50/60Hz
Power Factor >0.95
Total harmonic distortion <20% nominal

FEATURES

  • Rugged Build
    withstands the toughest environmental conditions
  • Energy Efficient & Environmentally friendly
    LEDs are significantly more energy-efficient
    than traditional bulbs, and there is no mercury
  • Safe Power Delivery
    extremely safe and totally waterproof
  • Simple to Install and Reposition
  • Smooth dimming effect

Specifications are subject to change without prior notice


ALIS LED CLIP ON LIGHTING FOR AGRICULTURE Demonstration

ALIS Induction System Spares

Replacement Power unit for Alis barn lights

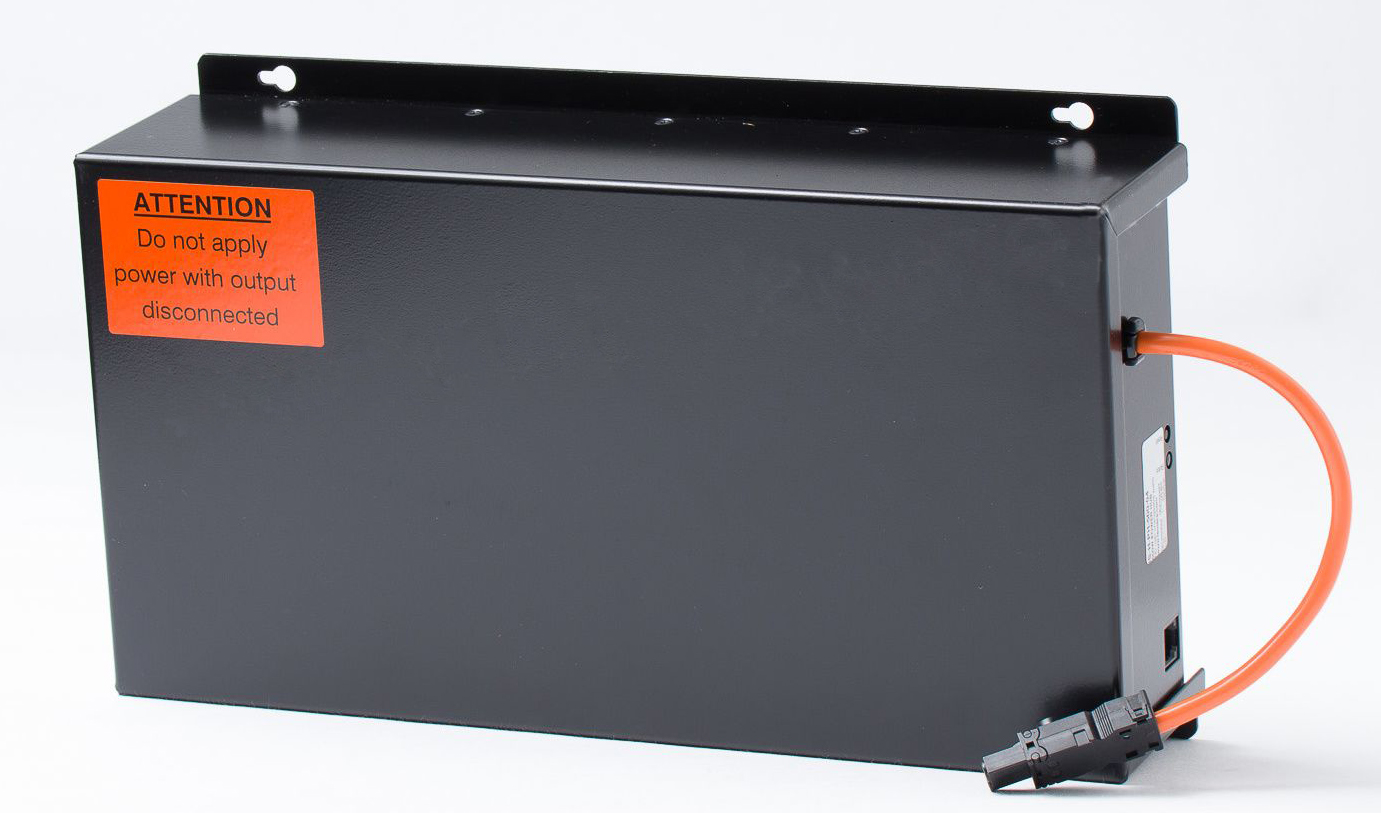

ALIS Power Hub

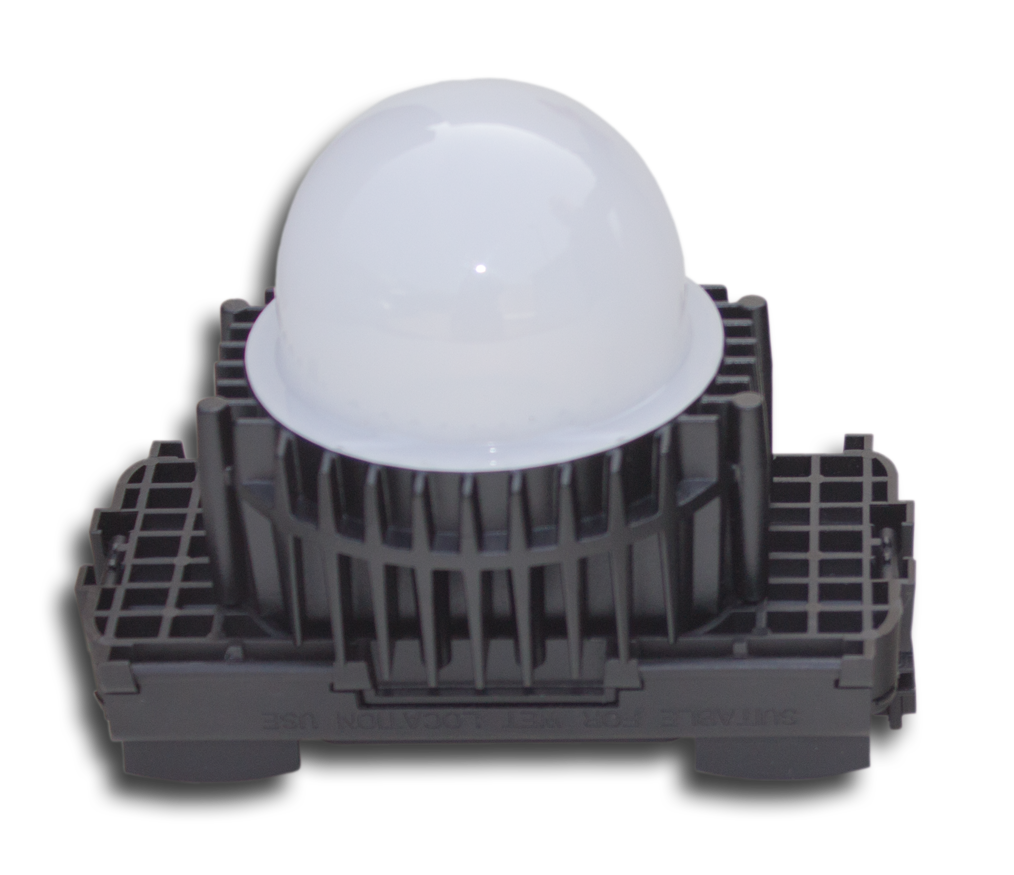

LED Induction Clip On Barn Lamp

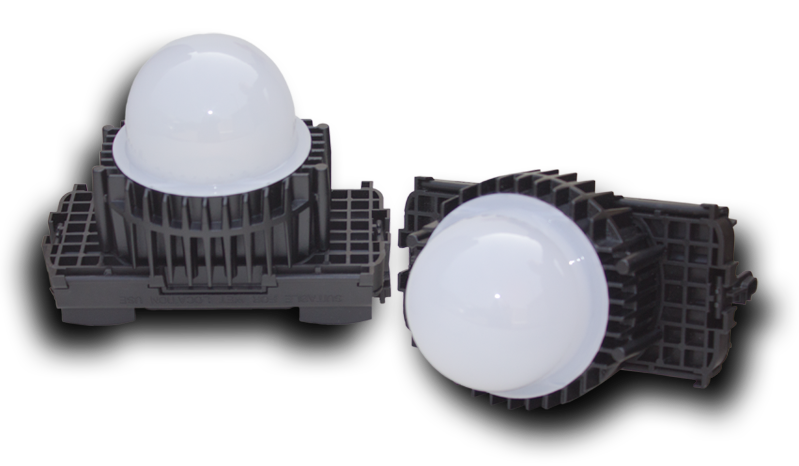

ALIS Barn Lamp

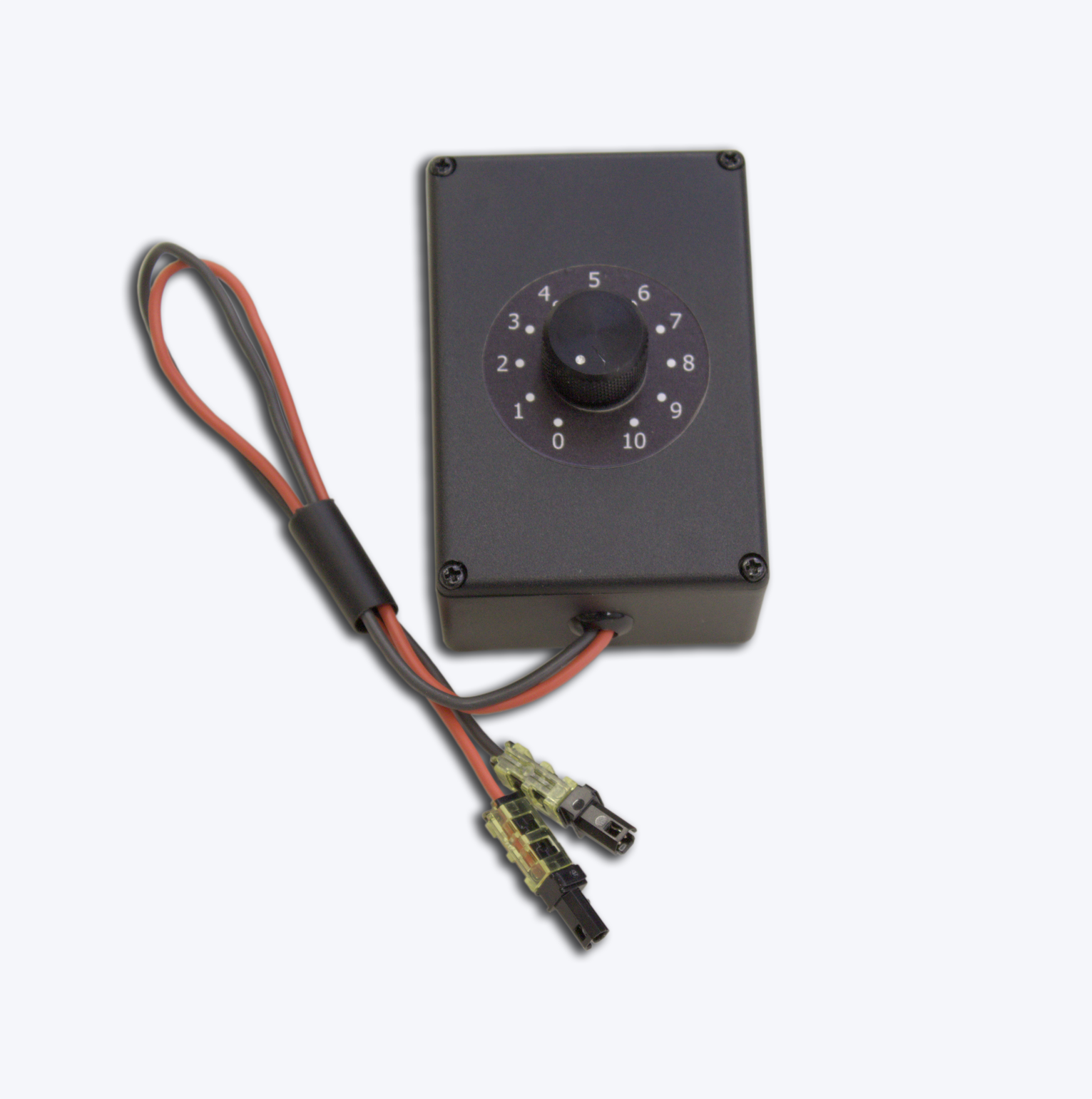

ALIS Dimmer potentiometer
ALIS Dimmer potentiometer
