LED Flood Lights

30W Led Dimmable Flood Light

The AgriLamp™ 30W Dimmable Floodlight provides a controllable level of light and can be used as a direct replacement for 100-150W incandescent light bulbs. This 30W lamp is capable of producing 70 lux on the ground.

It provides the most efficient and even coverage of light ever seen, taking poultry lighting into a new era.

The AgriLamp™ 30W Dimmable Floodlight delivers a dimmable, evenly distributed light using fewer fittings and, with the correct installation, completely removes dark areas providing a uniform penetration of light into alternative systems and for rearing day old chicks with quality headroom to spare for those reluctant starters. It has been designed specifically to provide wavelength and intensity for layers in all layer houses and for broilers in all broiler houses, making it a true alternative to incandescent, CFL lamps and fluorescent tubes. Robust and suitable for use with generators and emergency battery systems these floodlights are also suited for use with mobile units where power is an issue.

Furthermore, the 30W Dimmable Floodlight meets the 2010 animal welfare requirements of adequate lighting whereby a minimum of 20 lux lighting is required over 80% of the surface area of housing during daylight hours.

The AgriLamp™ 30W Dimmable Floodlight comes complete with mounting bracket.

FEATURES

  • Long LED life: More than 60,000 hours
  • Temperature range -20°C to 50°C
  • No UV or IR light radiation
  • Instant “ON” to 100% brightness
  • No mercury or other in-organics
  • Even light distribution
  • Excellent thermal efficiency
  • Safety Standard: CE approved
  • Works with worldwide electrical systems (200V-230V 50Hz)
TECHNICAL INFORMATION
Light Source 1X 30W High Power LED
Beam Angle 110°±10°
Lumens 2800
IP Grade IP66

WORKING ENVIRONMENT CONDITIONS
Ambient Temperatures -40°C to 55°C
Humidity Range 0 to 95% humidity (non-condensing)

ELECTRICAL SPECIFICATIONS
Voltage Requirement 230V 50Hz AC and 110V 60Hz AC
Power Consumption 30W
Power Factor 0.9

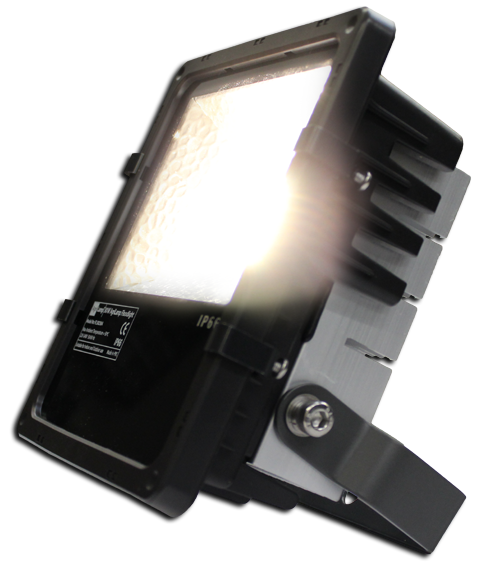

30w Dimmerble LED Floodlight

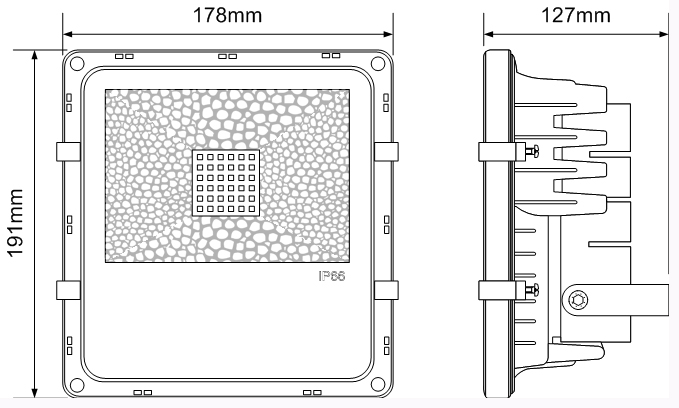

Dimension detail of 30w LED dimmable Floodlight

LED Symmetry Control Unit Datasheet
